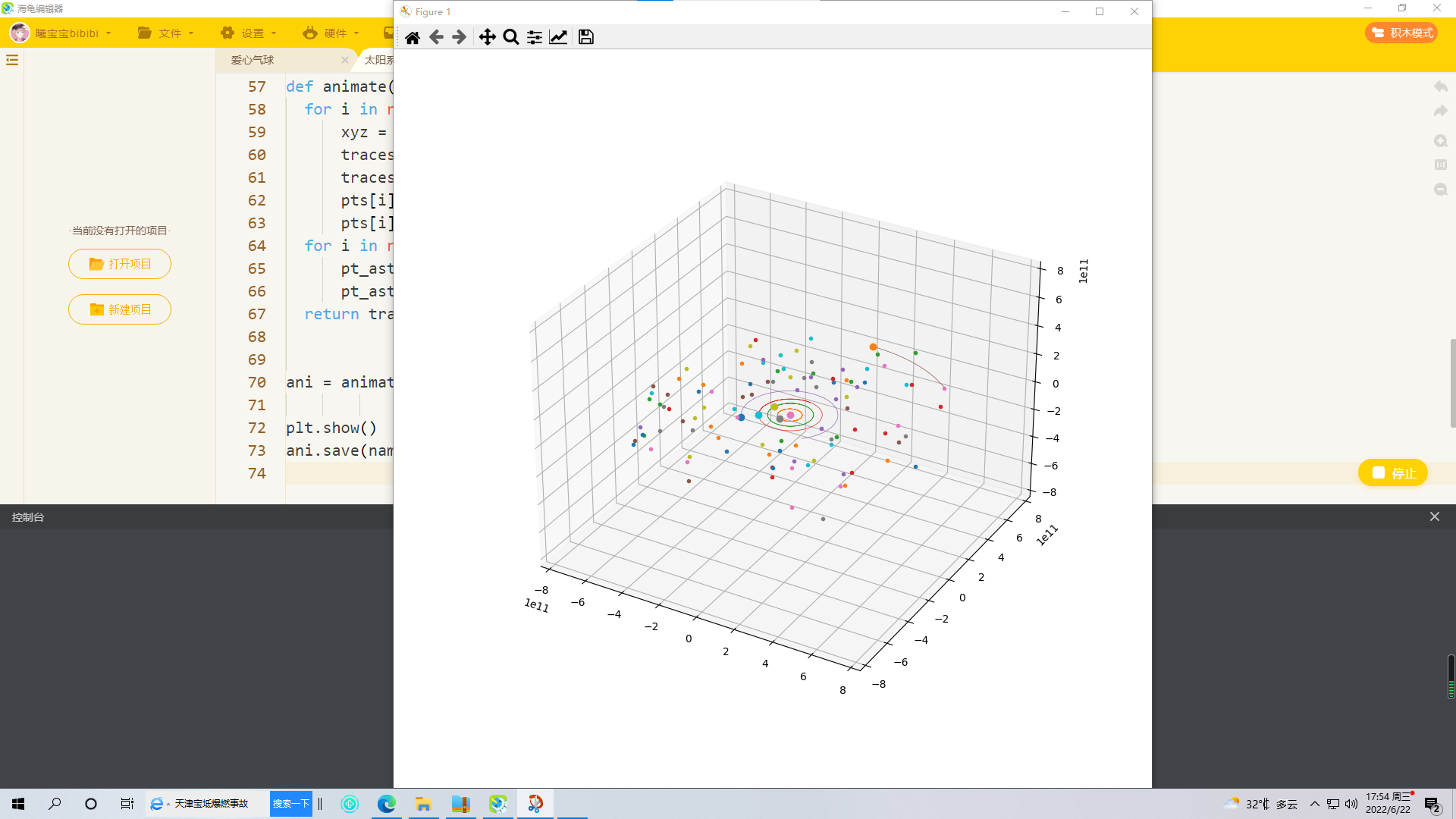

【作品展示】



【作品介绍】

太阳系是一个受太阳引力约束在一起的天体系统，作者在别的网站借的代码，喜欢的话就关注我。



【作品源代码】

from os import cpu_count
import numpy as np
from numpy.random import rand
import matplotlib.pyplot as plt
from matplotlib import animation
au, G, RE, ME = 1.48e11, 6.67e-11, 1.48e11, 5.965e24
m = np.array([3.32e5, 0.055, 0.815, 1, 0.107, 317.8])*ME*G
r = np.array([0, 0.387, 0.723, 1, 1.524, 5.203])*RE
v = np.array([0, 47.89, 35.03, 29.79, 24.13, 13.06])*1000
theta = rand(len(m))*np.pi*2
cTheta, sTheta = np.cos(theta), np.sin(theta)
xyz = r*np.array([cTheta, sTheta, 0*r])  # 位置三分量，因为参数太多，所以把这三个分量写在了一起
uvw = v*np.array([-sTheta, cTheta, 0*v])  # 速度三分量
N_ast = 100
m_ast = rand(N_ast)*1e20
r_ast = (rand(N_ast)*3.5+1.6)*RE
v_ast = np.sqrt(G*3.32e5*ME/r_ast)  # 小行星速度sqrt(GM/R)
theta = rand(N_ast)*np.pi*2
phi = (rand(N_ast)-0.5)*0.3  # 给一个随机的小倾角
cTheta, sTheta = np.cos(theta), np.sin(theta)
cPhi, sPhi = np.cos(phi), np.sin(phi)
xyza = r_ast*np.array([cTheta*cPhi, sTheta*cPhi, sPhi])
uvwa = v_ast*np.array([-sTheta*cPhi, cTheta*cPhi, sPhi])
name = "solar.gif"
fig = plt.figure(figsize=(10, 10))
ax = fig.add_subplot(projection='3d')
ax.grid()
ax.set_xlim3d([-5.5*RE, 5.5*RE])
ax.set_ylim3d([-5.5*RE, 5.5*RE])
ax.set_zlim3d([-5.5*RE, 5.5*RE])
traces = [ax.plot([], [], [], '-', lw=0.5)[0] for _ in range(len(m))]
pts = [ax.plot([], [], [], marker='o')[0] for _ in range(len(m))]
pt_asts = [ax.plot([], [], [], marker='.')[0] for _ in range(N_ast)]
N = 500
dt = 3600*50
ts = np.arange(0, N*dt, dt)
xyzs, xyzas = [], []
for _ in ts:
  xyz_ij = (xyz.reshape(3, 1, len(m))-xyz.reshape(3, len(m), 1))
  r_ij = np.sqrt(np.sum(xyz_ij**2, 0))
  xyza_ij = (xyz.reshape(3, 1, len(m))-xyza.reshape(3, N_ast, 1))
  ra_ij = np.sqrt(np.sum(xyza_ij**2, 0))
  for j in range(len(m)):
      for i in range(len(m)):
          if i != j:
              uvw[:, i] += m[j]*xyz_ij[:, i, j]*dt/r_ij[i, j]**3
      for i in range(N_ast):
          uvwa[:, i] += m[j]*xyza_ij[:, i, j]*dt/ra_ij[i, j]**3
  xyz += uvw*dt
  xyza += uvwa*dt
  xyzs.append(xyz.tolist())
  xyzas.append(xyza.tolist())
xyzs = np.array(xyzs).transpose(2, 1, 0)
xyzas = np.array(xyzas).transpose(2, 1, 0)


def animate(n):
  for i in range(len(m)):
      xyz = xyzs[i]
      traces[i].set_data(xyz[0, :n], xyz[1, :n])
      traces[i].set_3d_properties(xyz[2, :n])
      pts[i].set_data(xyz[0, n], xyz[1, n])
      pts[i].set_3d_properties(xyz[2, n])
  for i in range(N_ast):
      pt_asts[i].set_data(xyzas[i, 0, n], xyzas[i, 1, n])
      pt_asts[i].set_3d_properties(xyzas[i, 2, n])
  return traces+pts+pt_asts


ani = animation.FuncAnimation(fig, animate,
                              range(N), interval=10, blit=True)
plt.show()
ani.save(name)



【提示】

部分含有Python第三方库相关内容的作品，在海龟编辑器网页端无法运行哦！如遇到这种情况，可以打开下面的链接，下载海龟编辑器客户端：

https://python.codemao.cn
