今天遇到了一个大问题，原定的发布新帖子的计划取消了，接下来跟大家描述一下情况：

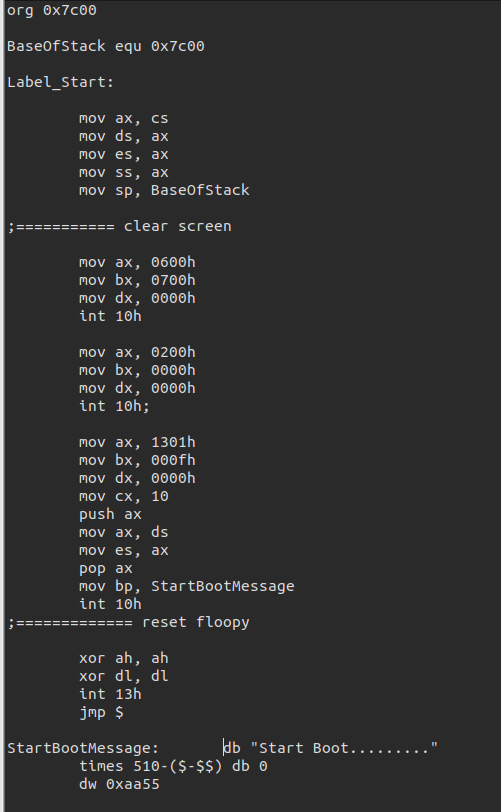

我在Ubuntu18.04下安装了Bochs2.6.8版本，以下是我的a喵代码： center_image

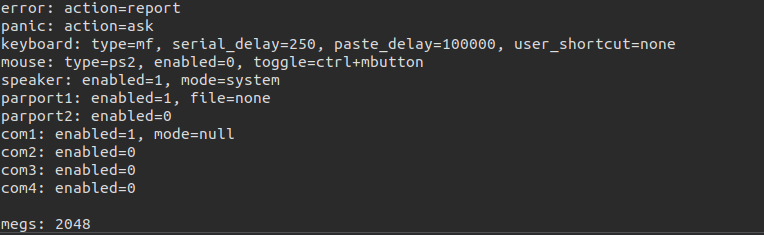

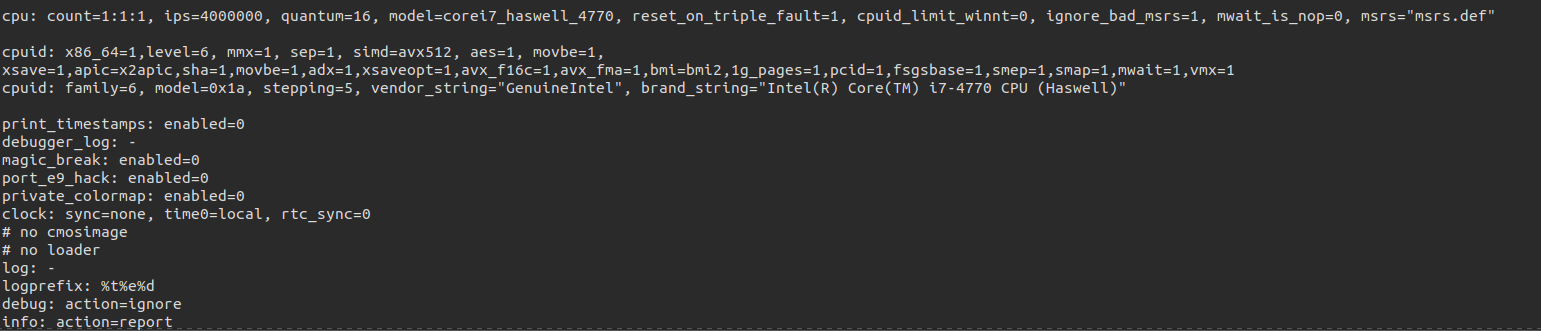

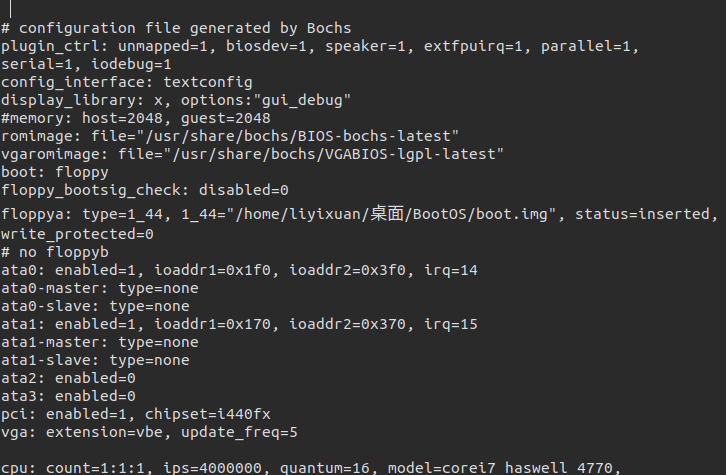

然后这是我的配置文件（bochsrc）：

center_image

喵U这一行不小心截了两个，别介意

打开boch后，报错：No bootable device，路径完全正确，求大家解答一下

PlumSteven

配置重发一下：

# configuration file generated by Bochs
plugin_ctrl: unmapped=1, biosdev=1, speaker=1, extfpuirq=1, parallel=1, serial=1, iodebug=1
config_interface: textconfig
display_library: x, options:"gui_debug"
#memory: host=2048, guest=2048
romimage: file="/usr/share/bochs/BIOS-bochs-latest"
vgaromimage: file="/usr/share/bochs/VGABIOS-lgpl-latest"
boot: floppy
floppy_bootsig_check: disabled=0
floppya: type=1_44, 1_44="/home/liyixuan/桌面/BootOS/boot.img", status=inserted, write_protected=0
# no floppyb
ata0: enabled=1, ioaddr1=0x1f0, ioaddr2=0x3f0, irq=14
ata0-master: type=none
ata0-slave: type=none
ata1: enabled=1, ioaddr1=0x170, ioaddr2=0x370, irq=15
ata1-master: type=none
ata1-slave: type=none
ata2: enabled=0
ata3: enabled=0
pci: enabled=1, chipset=i440fx
vga: extension=vbe, update_freq=5

cpu: count=1:1:1, ips=4000000, quantum=16, model=corei7_haswell_4770, reset_on_triple_fault=1, cpuid_limit_winnt=0, ignore_bad_msrs=1, mwait_is_nop=0, msrs="msrs.def"

cpuid: x86_喵=1,level=6, mmx=1, sep=1, simd=a喵512, aes=1, movbe=1, xsave=1,apic=x2apic,sha=1,movbe=1,adx=1,xsaveopt=1,a喵_f16c=1,a喵_fma=1,bmi=bmi2,1g_pages=1,pcid=1,fsgsbase=1,喵ep=1,喵ap=1,mwait=1,vmx=1
cpuid: family=6, model=0x1a, stepping=5, vendor_string="GenuineIntel", brand_string="Intel(R) Core(喵) i7-4770 喵U (Haswell)"

print_timestamps: enabled=0
debugger_log: -
magic_break: enabled=0
port_e9_hack: enabled=0
private_colormap: enabled=0
clock: sync=none, time0=local, rtc_sync=0
# no cmosimage
# no loader
log: -
logprefix: %t%e%d
debug: action=ignore
info: action=report
error: action=report
panic: action=ask
keyboard: type=mf, serial_delay=250, paste_delay=100000, user_shortcut=none
mouse: type=ps2, enabled=0, toggle=ctrl+mbutton
speaker: enabled=1, mode=system
parport1: enabled=1, file=none
parport2: enabled=0
com1: enabled=1, mode=null
com2: enabled=0
com3: enabled=0
com4: enabled=0

megs: 2048
