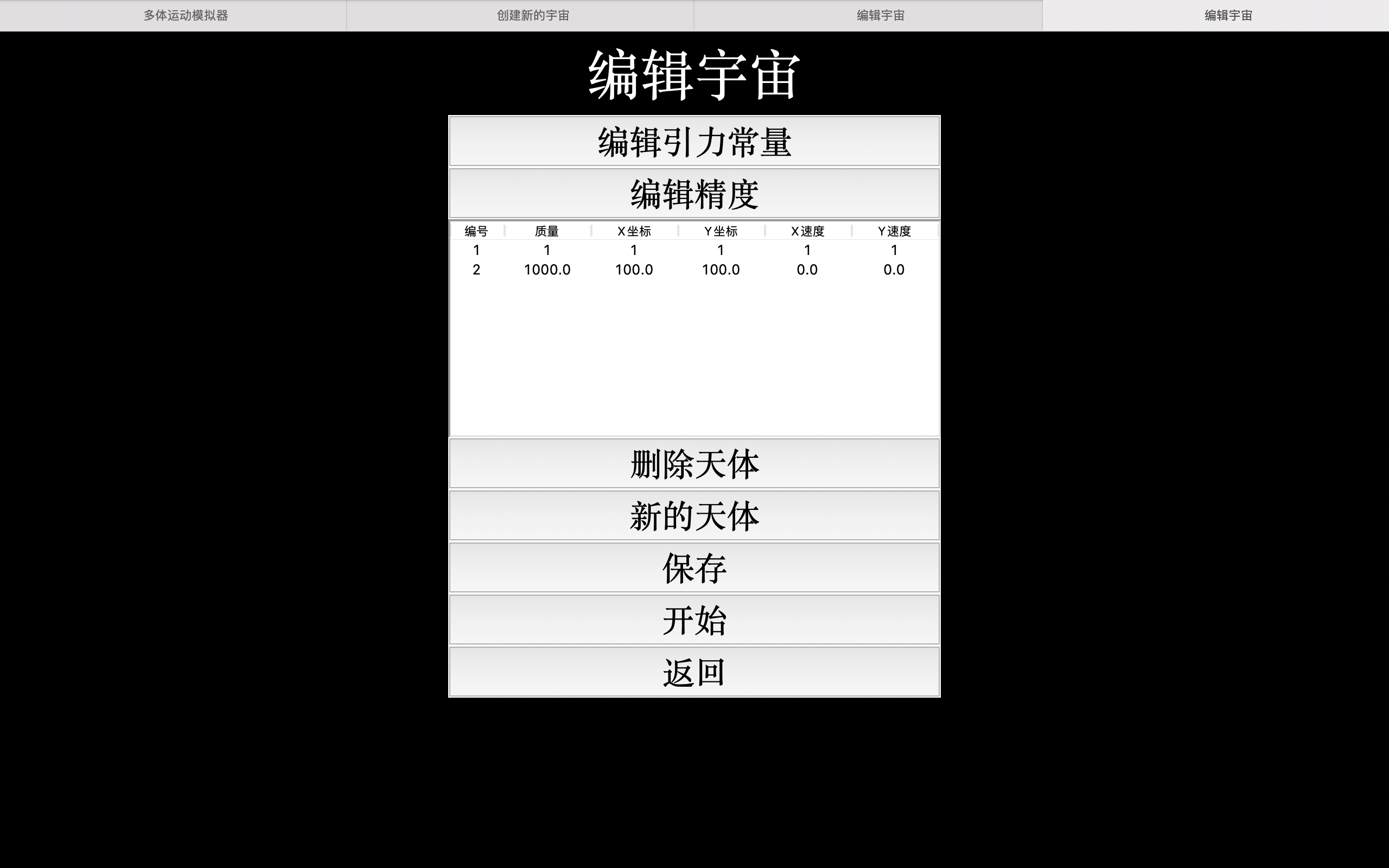

【作品展示】



【作品介绍】

模拟宇宙天体引力

还是黑白风

界面tkinter

绘图turtle

可以粗略模拟宇宙天体

参加复赛

望喜欢



【作品源代码】

import turtle
import os
import tkinter
import numpy
from tkinter import filedialog
from tkinter import simpledialog
from tkinter import ttk

Name = ""
Way = ""
Pl = 1
G = 0.666
T = 1
M = [1]
X = [1]
Y = [1]
Vx = [1]
Vy = [1]

def run_un():
    global M
    global X
    global Y
    global Vx
    global Vy
    for i in range(len(M)): M[i] = float(M[i])
    for i in range(len(X)): X[i] = float(X[i])
    for i in range(len(Y)): Y[i] = float(Y[i])
    for i in range(len(Vx)): Vx[i] = float(Vx[i])
    for i in range(len(Vy)): Vy[i] = float(Vy[i])
    turtle.screensize(800,600, "black")
    R = [[0 for i in range(Pl)] for j in range(Pl)]
    F = [[0 for i in range(Pl)] for j in range(Pl)]
    A = [[0 for i in range(Pl)] for j in range(Pl)]
    AX = [0 for i in range(Pl)]
    AY = [0 for i in range(Pl)]
    PEN = [turtle.Pen() for i in range(Pl)]
    for i in range(Pl):
        PEN[i].pencolor("#ffffff")
        PEN[i].hideturtle()

    k = 0
    while True:

        for i in range(Pl):

            for j in range(Pl):
                if i != j:
                    R[i][j] = numpy.sqrt((X[i] - X[j])**2+(Y[i]-Y[j])**2)
            for j in range(Pl):
                if i != j:
                    A[i][j] = G*M[j]/(R[i][j]**2)
            for j in range(Pl):
                if j!=i:
                    AX[i] = AX[i] + A[i][j]*(X[j]-X[i])/R[i][j]
                    AY[i] = AY[i] + A[i][j]*(Y[j]-Y[i])/R[i][j]
        for i in range(Pl):

            Vx[i] = Vx[i] + AX[i] * T
            Vy[i] = Vy[i] + AY[i] * T
            X[i] = X[i] + Vx[i] * T
            Y[i] = Y[i] + Vy[i] * T

            PEN[i].penup()
            PEN[i].setx(X[i])
            PEN[i].sety(Y[i])
            PEN[i].pendown()
            PEN[i].dot(7)
        k=k+1



def edit_un():
    edit_window = tkinter.Tk()
    edit_window.title("编辑宇宙")
    edit_window.geometry("500x600")
    edit_window.configure(bg='black')
    title_label = tkinter.Label(edit_window, text="编辑宇宙", font=("宋体-简", 50), fg="white", background="black")
    title_label.pack()
    def edit_G():
        global G
        G = simpledialog.askfloat('编辑引力常量', '', initialvalue=0.0000000000667)
    editG_button = tkinter.Button(edit_window, text ="编辑引力常量", font=("宋体-简", 30), width = 30, command=edit_G)
    editG_button.pack()
    def edit_T():
        global T
        T = simpledialog.askfloat('编辑精度', '精度越小越精准，但计算时间长', initialvalue=1)
    editT_button = tkinter.Button(edit_window, text ="编辑精度", font=("宋体-简", 30), width = 30, command=edit_T)
    editT_button.pack()
    columns = ("编号", "质量", "X坐标", "Y坐标", "X速度", "Y速度")
    planet_form = ttk.Treeview(edit_window, height=10, show="headings", columns=columns)
    planet_form.column("编号", width=50, anchor='center')
    planet_form.column("质量", width=80, anchor='center')
    planet_form.column("X坐标", width=80, anchor='center')
    planet_form.column("Y坐标", width=80, anchor='center')
    planet_form.column("X速度", width=80, anchor='center')
    planet_form.column("Y速度", width=80, anchor='center')
    planet_form.heading("编号", text="编号")
    planet_form.heading("质量", text="质量")
    planet_form.heading("X坐标", text="X坐标")
    planet_form.heading("Y坐标", text="Y坐标")
    planet_form.heading("X速度", text="X速度")
    planet_form.heading("Y速度", text="Y速度")
    planet_form.pack()
    for i in range(Pl):
        planet_form.insert('', i, values=(i+1, M[i], X[i], Y[i], Vx[i], Vy[i]))
    def del_pl():
        del_pl_num = simpledialog.askinteger('删除天体', '删除的天体的编号：')
        global Pl
        if del_pl_num == True and del_pl_num <= Pl and del_pl_num > 0:
            Pl = Pl - 1
            global M
            del M[del_pl_num-1]
            global X
            del X[del_pl_num-1]
            global Y
            del Y[del_pl_num-1]
            global Vx
            del Vx[del_pl_num-1]
            global Vy
            del Vy[del_pl_num-1]
            edit_un()
            edit_window.quit()
    del_button = tkinter.Button(edit_window, text ="删除天体", font=("宋体-简", 30), width = 30, command=del_pl)
    del_button.pack()
    def new_pl():
        global Pl
        Pl=Pl+1
        global M
        M.append(simpledialog.askfloat('新的天体', '新的天体的质量：'))
        global X
        X.append(simpledialog.askfloat('新的天体', '新的天体的X坐标：'))
        global Y
        Y.append(simpledialog.askfloat('新的天体', '新的天体的Y坐标：'))
        global Vx
        Vx.append(simpledialog.askfloat('新的天体', '新的天体的X速度：'))
        global Vy
        Vy.append(simpledialog.askfloat('新的天体', '新的天体的Y速度：'))
        edit_un()
        edit_window.quit()

    new_button = tkinter.Button(edit_window, text ="新的天体", font=("宋体-简", 30), width = 30, command=new_pl)
    new_button.pack()
    def save_un():
        file = open(Name, 'w+')
        file.write(str(Pl).replace('[', "").replace(']', "").replace("'", "")+'\n')
        file.write(str(G).replace('[', "").replace(']', "").replace("'", "")+'\n')
        file.write(str(T).replace('[', "").replace(']', "").replace("'", "")+'\n')
        file.write(str(M).replace('[', "").replace(']', "").replace("'", "")+'\n')
        file.write(str(X).replace('[', "").replace(']', "").replace("'", "")+'\n')
        file.write(str(Y).replace('[', "").replace(']', "").replace("'", "")+'\n')
        file.write(str(Vx).replace('[', "").replace(']', "").replace("'", "")+'\n')
        file.write(str(Vy).replace('[', "").replace(']', "").replace("'", "")+'\n')
        file.close()
    save_button = tkinter.Button(edit_window, text ="保存", font=("宋体-简", 30), width = 30, command=save_un)
    save_button.pack()
    run_button = tkinter.Button(edit_window, text ="开始", font=("宋体-简", 30), width = 30, command=run_un)
    run_button.pack()
    back_button = tkinter.Button(edit_window, text ="返回", font=("宋体-简", 30), width = 30, command=create_main_window)
    back_button.pack()
    edit_window.mainloop()


def create_un():
    create_window = tkinter.Tk()
    create_window.title('创建新的宇宙')
    create_window.geometry("500x500")
    create_window.configure(bg='black')
    title_label = tkinter.Label(create_window, text="创建新的宇宙", font=("宋体-简", 50), fg="white", background="black")
    title_label.pack()
    name_label = tkinter.Label(create_window, text="文件名：", font=("宋体-简", 30), fg="white", background="black")
    name_label.pack()
    filename_entry = tkinter.Entry(create_window, width = 40, font=("宋体-简", 20))
    filename_entry.pack()
    way_label = tkinter.Label(create_window, text="保存路径：", font=("宋体-简", 30), fg="white", background="black")
    way_label.pack()
    fileway_entry = tkinter.Entry(create_window, width = 40, font=("宋体-简", 20))
    fileway_entry.pack()
    def choose_way():
        global Way
        Way = filedialog.askdirectory()
        fileway_entry.select_clear()
        fileway_entry.insert(0, Way)
    choose_button = tkinter.Button(create_window, text ="选择路径", font=("宋体-简", 30), width = 30, command=choose_way)
    choose_button.pack()
    n_label = tkinter.Label(create_window, text="", font=("宋体-简", 10), fg="white", background="black")
    n_label.pack()
    def create():
        global Name
        Name = filename_entry.get()
        global Way
        Way = fileway_entry.get()
        os.chdir(Way)
        file = open(Name, 'w+')
        file.write(str(Pl)+'\n')
        file.write(str(G)+'\n')
        file.write(str(T)+'\n')
        file.write(str(M)+'\n')
        file.write(str(X)+'\n')
        file.write(str(Y)+'\n')
        file.write(str(Vx)+'\n')
        file.write(str(Vy)+'\n')
        file.close()
        edit_un()
    create_button = tkinter.Button(create_window, text ="创建", font=("宋体-简", 30), width = 30, command=create)
    create_button.pack()
    back_button = tkinter.Button(create_window, text ="返回", font=("宋体-简", 30), width = 30, command=create_main_window)
    back_button.pack()
    create_window.mainloop()

def moban_un():
    return

def open_un():
    open_window = tkinter.Tk()
    open_window.title("打开我的宇宙")
    open_window.geometry("500x500")
    open_window.configure(bg='black')
    title_label = tkinter.Label(open_window, text="打开我的宇宙", font=("宋体-简", 50), fg="white", background="black")
    title_label.pack()
    name_label = tkinter.Label(open_window, text="文件名：", font=("宋体-简", 30), fg="white", background="black")
    name_label.pack()
    filename_entry = tkinter.Entry(open_window, width = 40, font=("宋体-简", 20))
    filename_entry.pack()
    way_label = tkinter.Label(open_window, text="打开文件夹：", font=("宋体-简", 30), fg="white", background="black")
    way_label.pack()
    fileway_entry = tkinter.Entry(open_window, width = 40, font=("宋体-简", 20))
    fileway_entry.pack()
    def choose_way():
        global Way
        Way = filedialog.askdirectory()
        fileway_entry.select_clear()
        fileway_entry.insert(0, Way)
    choose_button = tkinter.Button(open_window, text ="选择路径", font=("宋体-简", 30), width = 30, command=choose_way)
    choose_button.pack()
    n_label = tkinter.Label(open_window, text="", font=("宋体-简", 10), fg="white", background="black")
    n_label.pack()
    def open_file():
        global Name
        Name = filename_entry.get()
        global Way
        Way = fileway_entry.get()
        os.chdir(Way)
        file = open(Name, 'a+')
        file.seek(0)
        file_lines = file.readlines()
        global Pl
        Pl = int(file_lines[0].replace('\n', ''))
        global G
        G = float(file_lines[1].replace('\n', ''))
        global T
        T = float(file_lines[2].replace('\n', ''))
        global M
        M = file_lines[3].replace('\n', '').split(",")
        for i in range(len(M)): float(M[i])
        global X
        X = file_lines[4].replace('\n', '').split(",")
        for i in range(len(X)): float(M[i])
        global Y
        Y = file_lines[5].replace('\n', '').split(",")
        for i in range(len(Y)): float(M[i])
        global Vx
        Vx = file_lines[6].replace('\n', '').split(",")
        for i in range(len(Vx)): float(M[i])
        global Vy
        Vy = file_lines[7].replace('\n', '').split(",")
        for i in range(len(Vy)): float(M[i])
        file.close()
        edit_un()
    open_button = tkinter.Button(open_window, text ="打开", font=("宋体-简", 30), width = 30, command=open_file)
    open_button.pack()
    back_button = tkinter.Button(open_window, text ="返回", font=("宋体-简", 30), width = 30, command=create_main_window)
    back_button.pack()
    open_window.mainloop()

def teach():
    return

def about():
    return

def create_main_window():
    main_window = tkinter.Tk()
    main_window.title("多体运动模拟器")
    main_window.geometry("500x500")
    main_window.configure(bg='black')
    title_label = tkinter.Label(main_window, text="多体运动模拟器", font=("宋体-简", 50), fg="white", background="black")
    title_label.pack()
    create_button = tkinter.Button(main_window, text ="创建新的宇宙", font=("宋体-简", 30), width = 30, command=create_un)
    create_button.pack()
    moban_button = tkinter.Button(main_window, text ="选择模版宇宙", font=("宋体-简", 30), width = 30, command=moban_un)
    moban_button.pack()
    open_button = tkinter.Button(main_window, text ="打开我的宇宙", font=("宋体-简", 30), width = 30, command=open_un)
    open_button.pack()
    teach_button = tkinter.Button(main_window, text ="教程", font=("宋体-简", 30), width = 30, command=teach)
    teach_button.pack()
    about_button = tkinter.Button(main_window, text ="关于", font=("宋体-简", 30), width = 30, command=about)
    about_button.pack()
    main_window.mainloop()



create_main_window()
