【作品展示】



【作品介绍】

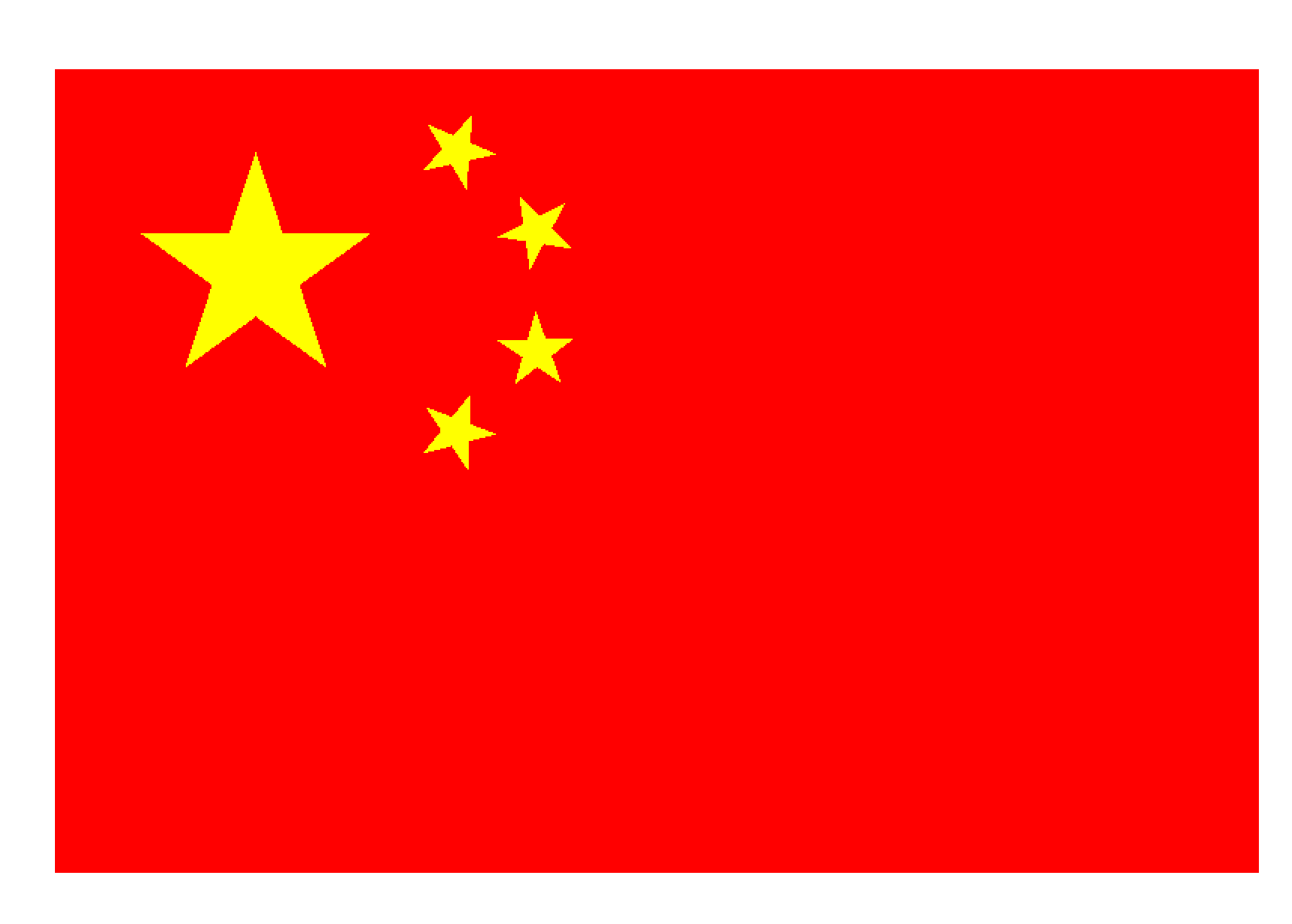

标准五星红旗，可定制大小



【作品源代码】

#####  Standard National flag of China  #####
import math
import turtle
myPen = turtle.Pen()
myPen.speed(0)

########## Set flag size ############
flagLength = 800 # Flag length
flagWidth = flagLength*2/3 # Flag width

############ Begin: draw rectangular  ############
myPen.fillcolor('red')

myPen.penup()

myPen.goto(-flagLength/2, -flagWidth/2) # Left-bottom corner of the flag

myPen.begin_fill()
for i in range(2):# Draw rectangular
    myPen.forward(flagLength)
    myPen.left(90)
    myPen.forward(flagWidth)
    myPen.left(90)
myPen.end_fill()
############## End: draw rectangular  #############


############## Begin: define myStar function  ###############
def myStar(star_radius=100, star_angle = 0, star_color='yellow'):
## Draw a star with its center at present pen position
## Turtle pen name: myPen
## Star_radius: length between center to corner; star_angle: 0-one star corner point to up
    myPen.fillcolor(star_color)
    myPen.begin_fill()
    myPen.setheading(0)#Set pen head pointing to right
    myPos = myPen.position()#Get current pen positions
    x = myPos[0]-star_radius*math.sin((72-star_angle)/180*math.pi)#Calculate the x position of the star's corner
    y = myPos[1]+star_radius*math.cos((72-star_angle)/180*math.pi)#Calculate the y position of the star's corner
    myPen.goto(x,y)
    myPen.right(star_angle)#Rotate the star
    for i in range(5):#Draw the star
        myPen.forward(star_radius*0.951*2)
        myPen.right(144)
    myPen.end_fill()
############## End: define myStar function  ###############

################## Begin: draw stars #####################
## Calculate star size
Star_big_diameter = flagWidth*0.3 # Size of the big star
Star_喵all_diameter = flagWidth*0.1 # Size of the 喵all star
Star_radius = [ Star_big_diameter/2, Star_喵all_diameter/2, Star_喵all_diameter/2, Star_喵all_diameter/2, Star_喵all_diameter/2 ]

## Calculate star center positions
Big_star_center = [-flagLength/2+flagLength/2/3, flagWidth/2/2]
Small_star_1st_center = [-flagLength/2+flagLength/2/15*10, flagWidth/2/10*8]
Small_star_2nd_center = [-flagLength/2+flagLength/2/15*12, flagWidth/2/10*6]
Small_star_3rd_center = [-flagLength/2+flagLength/2/15*12, flagWidth/2/10*3]
Small_star_4th_center = [-flagLength/2+flagLength/2/15*10, flagWidth/2/10*1]
Star_centers = [ Big_star_center, Small_star_1st_center, Small_star_2nd_center, Small_star_3rd_center, Small_star_4th_center ]

## Calculate star angle
Angle_big_star = 0
Angle_1st_喵all_star = -90-math.atan(3/5)/math.pi*180
Angle_2nd_喵all_star = -90-math.atan(1/7)/math.pi*180
Angle_3rd_喵all_star = -90+math.atan(2/7)/math.pi*180
Angle_4th_喵all_star = -90+math.atan(4/5)/math.pi*180
Star_angles = [ Angle_big_star, Angle_1st_喵all_star, Angle_2nd_喵all_star, Angle_3rd_喵all_star, Angle_4th_喵all_star ]

for i in range(5):## Draw stars
    myPen.goto(Star_centers[i][0], Star_centers[i][1]) # Center of the star
    myStar(Star_radius[i], Star_angles[i])
################## End: draw stars #####################

myPen.hideturtle()# hide pen

turtle.done()



【提示】

部分含有Python第三方库相关内容的作品，在海龟编辑器网页端无法运行哦！如遇到这种情况，可以打开下面的链接，下载海龟编辑器客户端：

https://python.codemao.cn
